Turbine flow meter for measuring the flow of clean liquids



Introduction


The Turbine Flow Meter is an excellent device designed for measuring the flow of clean liquids. It operates based on advanced turbine technology, which ensures high accuracy and reliability in flow measurement. With its simple yet effective design, it can be easily installed and maintained. It converts the liquid flow into electrical signals, allowing for convenient data acquisition and monitoring. This meter is widely used in various industries, such as chemical, pharmaceutical, and food, providing accurate and stable performance. It is an ideal choice for those who need precise liquid flow measurement, helping to optimize production processes and ensure product quality.



Dimensions

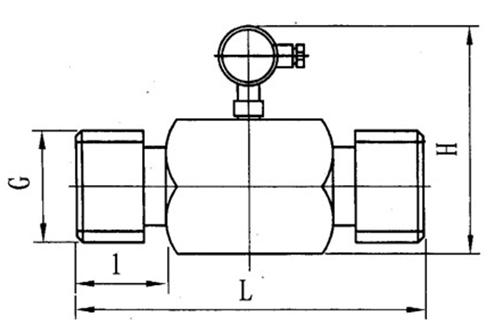

Thread Connection







Turbine Flow Meter For Measuring The Flow Of Clean Liquids

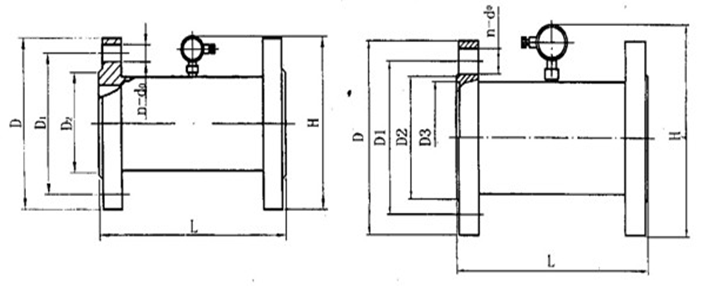

Flange Connection



Turbine Flow Meter For Measuring The Flow Of Clean Liquids



Pipe Size

DN (mm)

Sensor

Dimension

(mm)

 Flange Dimension (mm) thread size

L H D D1 D2 D3 n-do L1(mm) G
4 225 145             1/2
6 225 145             1/2
10 345 170             1/2
15 75 190 95 65 45   4-14 23 1
20 85 210 105 75 55   4-14 23 1
25 100 230 115 85 65   4-14 30 11/4
32 120 250 140/135 100 78   4-18 30 11/4
40 140 260 150/145 110 85   4-18 35 2
50 150 270 165/160 125 100   4-18
65 150 290 185/180 145 125   4-18
80 200 300 200/195 160 135   8-18
100 220 330 220/215 180 155   8-18
125 250 380 250/245 210 185   8-18
150 300 390 285/280 240 210   8-23
200 360 455 340/335 295 265   12-23
250 400 510 405 355 320   12-26/25
300 420 565 460 410 375   12-26/25
400 560 680 580 525 485   16-30
500 600 790 715/705 650 608   20-34



Technical Specifications



Pipe Size

(DN)mm

 Flow Range(m3/h) Nominal pressure (Mpa)
0.2% 0.5% 1.0%
4     0.04-0.25 6.3
6     0.1-0.6 6.3
10     0.2-1.2 6.3
15 1.2～4 0.6～6 0.4～6

2.5

6.3

16
20 2～6 0.8～8 0.6～8
25 3～10 1.2～12 1.2～12
32 4～12 1.5～15 1～20
40 8～25 3～30 3～30
50 12～40 5～50 5～50

6.3

2.5
65 15～60 7～70 5～70
80 20～100 16～100 12～120
100 50～160 25～160 20～200
125 50～200 30～250 25～280
150 100～300 50～300 40～400
200 200～600 100～600 80～800
250 300～1000 160～1000 120～1200 2.5
300   250～1600
400   400～2500
500   600～4000




Ambient Temperature -20～+55℃
Relative Temperature 5%～95%
Atmospheric Pressure 86～106Kpa
Ordinary Type Medium Temperature -20～+120℃
Explosion-Proof Type Medium Temperature -20～70℃
Explosion Proof dⅡBT5
Power Supply

Two wire: +24VDC

Three wire:+12VDC～＋24VDC
Connection Thread or Flange
