Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G

Name: Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid Paste 6G
Brand: KACISE
Price: 1 USD

Buy cheap Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G product

Brand Name : KACISE

Model Number : KLD-601/602

Certification : CE

Place of Origin : China

MOQ : 0-100

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram， Paypal

Supply Ability : 10000pcs/month

Delivery Time : 5-8 working days

Packaging Details : carton/wooden case, or customers requests

Aerial : Rod Antenna

Casing : Aluminum/Plastic

Connection : Flange (optional) / Thread

Frequency : 6GHz

Temperature : (-40 ~ 180) ℃

Power Source : Two-wire (DC24V) Four-wire（DC24V/AC220V）

Protection Class : IP65/IP67

Intrinsically safe : Exia IIC T6 Ga

Standard : Non-explosion-proof

Contact Now

Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G

Introduction

Antenna system to launch and microwave receiving energy is very low, very short pulse. Radar waves travel with the speed of light. The running time can be through the electronic components are converted into a signal. Measurement of this special time extension method can realize stable, accurate in a very short period of time.

Even if the condition is very complex, the presence of false echo, with the latest micro-processing technology and debugging software also can analyze the level echo accurately.

Intelligent Radar Level Gauge Microwave Pulse Measurement For Liquid / Paste 6G

Parameters

Suitable for Medium	Liquid, slightly corrosive liquid
Explosion-proof Grade	Exia IIC T6 Ga/ Exd ia IIC T6 Gb
Measuring Range	20m
Aerials	The Rod Antenna (PP/PTFE)
Frequency	6GHz
Temperature	(-40 ~ 130) ℃
Measurement Precision	±10mm
Process Pressure	(-0.1 ~ 0.3) MPa
The signal Output	(4 ~ 20) mA/HART
The Scene Display	Four LCD/can be programmed
Power Source	Two-wire (DC24V) Four-wire(DC24V/AC220V)
Repeatability	± 1mm
Casing	Aluminum/Plastic
Connection	Flange (optional) / Thread

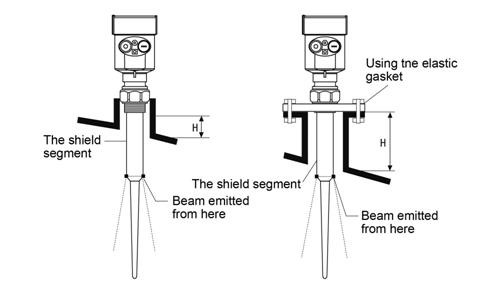

Tank Installation

A Standard Installation

The radar antenna cannot tilt to the tank wall

In order to minimize temperature effect,at the junction of butt joint of flange must use the spring washer

The rod antenna launching point must reach out to install pipe

The vertical placement of the rod antenna beam direction,don't let the tank wall
